Page 30: Accessories
Radius slot channel.
Art. C1R: Radius slot channel with 8 mm heelsafe slot
Art. C2R: Radius slot channel with 20 mm standard slot
Art. C1BDVR: Radius slot channel with 8 mm heelsafe slot and vertical edges
Art. C2BDVR: Radius slot channel with 20 mm standard slot and vertical edges
Art. C1BDVLR: Radius slot channel with 8 mm heelsafe lateral slot and vertical edges
Art. C2BDVLR: Radius slot channel with 20 mm standard lateral slot and vertical edges
Corner unit with square top plate, with one floor drain-channel connection.
![Corner unit with square top plate, with one floor drain-channel connection.](/images/catalogue/corner-unit-with-square-top-plate-one-floor-drain-channel-connection-0121.jpg)
Corner unit with square top plate, with one floor drain-channel connection.
![Dwg Corner unit with square top plate, with one floor drain-channel connection.](/images/catalogue/dwg-corner-unit-with-square-top-plate-one-floor-drain-channel-connection-0121.jpg)
Dwg Corner unit with square top plate, with one floor drain-channel connection.
ARTICLE | A | S | H |
Dimensions in mm: | |||
** CC80 | 80 | 3 | * |
** CC100 | 100 | 3 | * |
CC156 | 150 | 6 | * |
CC206 | 200 | 6 | * |
CC258 | 250 | 8 | * |
CC308 | 300 | 8 | * |
* = Variable dimensions depending on the channel height
** = CC80 and CC100 have blind (not perforated) cover
Accessories available on request.
Art. IL: 1/2” inlet socket to let water flush in and clean the drain
![inlet socket to let water flush in and clean the drain](/images/catalogue/inlet-socket-to-let-water-flush-and-clean-the-drain-art-il.jpg)
inlet socket to let water flush in and clean the drain
![inlet socket to let water flush in and clean the drain in stainless steel](/images/catalogue/inlet-socket-to-let-water-flush-and-clean-the-drain-art-il-2.jpg)
inlet socket to let water flush in and clean the drain in stainless steel

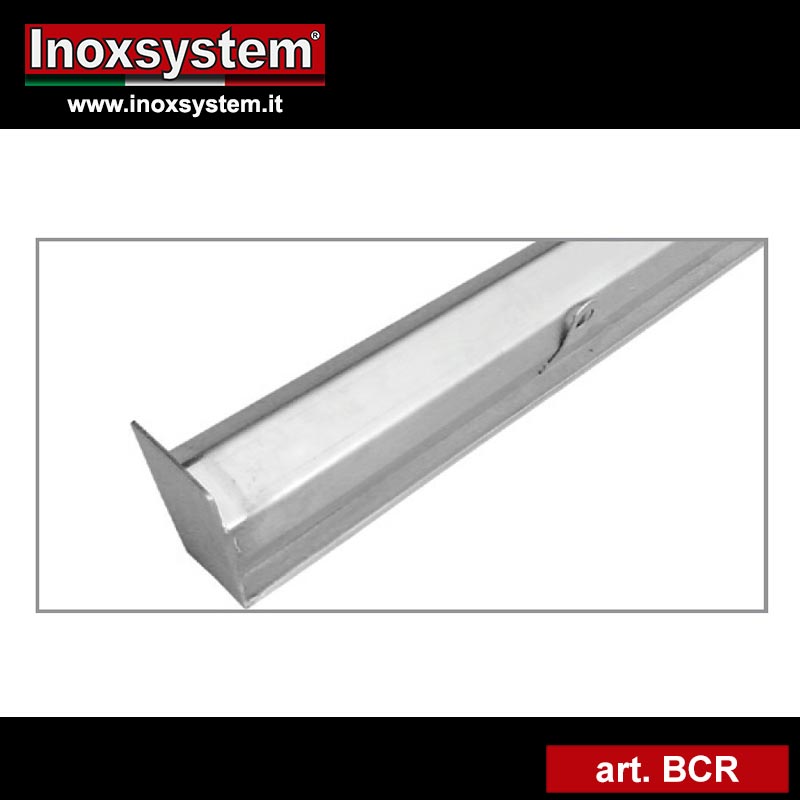

Art. BCR: Reinforced edges filled with epoxy resin - Load class D400 See page 3
![Reinforced edges filled with epoxy resin - Load class D400 See page 3](/images/catalogue/reinforced-edges-filled-with-epoxy-resin-load-class-d400-art-bcr.jpg)
Reinforced edges filled with epoxy resin - Load class D400 See page 3
![Particular Reinforced edges filled with epoxy resin - Load class D400 See page 3](/images/catalogue/particular-reinforced-edges-filled-with-epoxy-resin-load-class-d400-art-bcr.jpg)
Particular Reinforced edges filled with epoxy resin - Load class D400 See page 3
Art. PL: Adjustable levelling feet
![Adjustable levelling feet](/images/catalogue/adjustable-levelling-feet-art-pl.jpg)
Adjustable levelling feet
![Particular Adjustable levelling feet](/images/catalogue/adjustable-levelling-feet-art-pl-2.jpg)
Particular Adjustable levelling feet
Art. FLC: Connection flanges for transport and installation of slot channels
Art. FLG: Connection flanges for transport and installation of channel with grating
Art. A90: Slot channel angle
Art. A90G: Channel with grating angle
![Connection flanges for transport and installation of channels](/images/catalogue/connection-flanges-for-transport-installation-slot-channels-art-flc.jpg)
Connection flanges for transport and installation of channels
![Connection flanges for transport and installation of channels](/images/catalogue/connection-flanges-for-transport-installation-slot-channels-art-flc-2.jpg)
Connection flanges for transport and installation of channels
Different types of top inner covers available on request*
* always check if it is possible to replace the standard cover with these special covers
-
* Dimensions can be modified on request.
-
* These technical drawings are property of INOXSYSTEM
® and cannot be copied or reproduced without our prior written permission.
