Page 33: Reduced slot channel line
Line 1250
Heel-proof slot channel with siphoned floor drain
![line 1250 Heel-proof slot channel with siphoned floor drain in stainless steel](/images/catalogue/heel-proof-slot-channel-with-siphoned-floor-drain-stainless-steel-1250.jpg)
line 1250 Heel-proof slot channel with siphoned floor drain in stainless steel
![line 1250 Dwg Heel-proof slot channel with siphoned floor drain in stainless steel](/images/catalogue/dwg-heel-proof-slot-channel-with-siphoned-floor-drain-stainless-steel-1250.jpg)
line 1250 Dwg Heel-proof slot channel with siphoned floor drain in stainless steel
Technical details:
- Version with odor trap
- 200x200 mm top cover outlet Ø 63 mm, h 140 mm
- With odor trap and filter basket
- See pages 12 - 14 - 15 for more details
- Version with odor trap
- 200x200 mm top cover outlet Ø 63 mm, h 140 mm
- With odor trap and filter basket
- See pages 12 - 14 - 15 for more details
Line 1150
Heelsafe slot channel with direct outlet with inspection cover
![line 1150 Heelsafe slot channel with direct outlet with inspection cover in stainless steel](/images/catalogue/heelsafe-slot-channel-direct-outlet-inspection-cover-stainless-steel-1150.jpg)
line 1150 Heelsafe slot channel with direct outlet with inspection cover in stainless steel
![line 1150 Dwg Heelsafe slot channel with direct outlet with inspection cover in stainless steel](/images/catalogue/dwg-heelsafe-slot-channel-direct-outlet-inspection-cover-stainless-steel-1150.jpg)
line 1150 Dwg Heelsafe slot channel with direct outlet with inspection cover in stainless steel
Technical details:
- 8 mm Heelsafe slot
- Version without odor trap, with access unit
- 80x80 mm access unit with outlet Ø 63 mm, h 100 mm
- Direct outlet with filter basket
- See pages 12 - 14 - 15 for more details
- 8 mm Heelsafe slot
- Version without odor trap, with access unit
- 80x80 mm access unit with outlet Ø 63 mm, h 100 mm
- Direct outlet with filter basket
- See pages 12 - 14 - 15 for more details

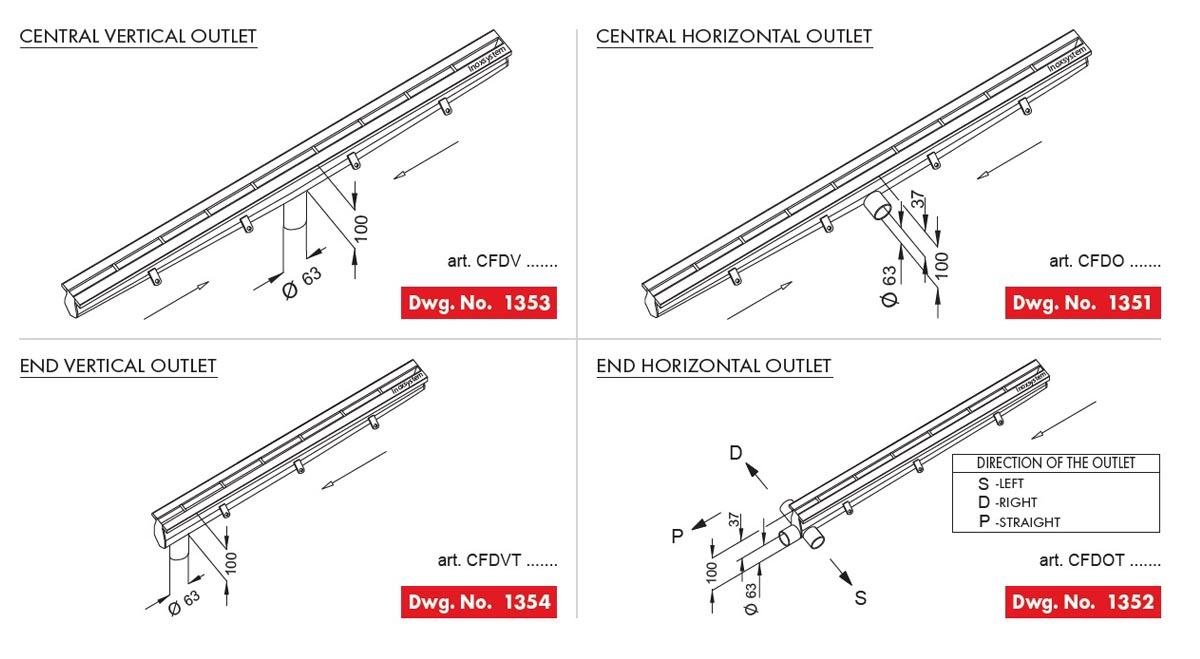

Line 1350
Channel with heelsafe slot with direct unloading that cannot be inspected
![line 1350 Channel with heelsafe slot with direct unloading that cannot be inspected in stainless steel](/images/catalogue/channel-heelsafe-slot-direct-unloading-that-cannot-inspected-stainless-steel-1350.jpg)
line 1350 Channel with heelsafe slot with direct unloading that cannot be inspected in stainless steel
![line 1350 Dwg Channel with heelsafe slot with direct unloading that cannot be inspected in stainless steel](/images/catalogue/dwg-channel-heelsafe-slot-direct-unloading-that-cannot-inspected-stainless-steel-1350.jpg)
line 1350 Dwg Channel with heelsafe slot with direct unloading that cannot be inspected in stainless steel
Technical details:
- 8 mm Heelsafe slot
- Version without odor trap, without access unit
- Direct outlet Ø 63 mm, h 100 mm
- Direct outlet without filter basket
- See pages 12, 14 and 15 for more details
- 8 mm Heelsafe slot
- Version without odor trap, without access unit
- Direct outlet Ø 63 mm, h 100 mm
- Direct outlet without filter basket
- See pages 12, 14 and 15 for more details
Choose the slot width that best suits your needs
![choice of standard slot section in stainless steel](/images/catalogue/choice-standard-slotted-section-stainless-steel.jpg)
choice of standard slot section in stainless steel
![choice of reduced slot section in stainless steel](/images/catalogue/choice-heelsafe-slotted-section-stainless-steel.jpg)
choice of reduced slot section in stainless steel
EACH LINE SHOULB
BE MANUFACTURED
WITH STANDARD
OR HEELSAFE SLOT
LETTER “R” MEANS 8 mm
HEELSAFE SLOT,
LETTER “S” MEANS 20 mm
STANDARD SLOT
EXAMPLE:
LINE 1050, ARTICLE “CFV”
IF WITH HEELSAFE SLOT,
THE ARTICLE
WILL BE CFVR;
IF WITH STANDARD SLOT,
THE ARTICLE
WILL BE CFVS;
BE MANUFACTURED
WITH STANDARD
OR HEELSAFE SLOT
LETTER “R” MEANS 8 mm
HEELSAFE SLOT,
LETTER “S” MEANS 20 mm
STANDARD SLOT
EXAMPLE:
LINE 1050, ARTICLE “CFV”
IF WITH HEELSAFE SLOT,
THE ARTICLE
WILL BE CFVR;
IF WITH STANDARD SLOT,
THE ARTICLE
WILL BE CFVS;
-
* Dimensions can be modified on request.
-
* These technical drawings are property of INOXSYSTEM
® and cannot be copied or reproduced without our prior written permission.
